Friday, July 8, 2011

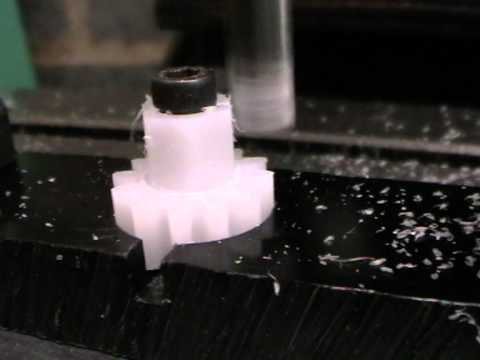

Clamping with one screw in the middle
I am fitting a spur gear to a bigger spur gear by cutting an external hexagon, with small radiuses, on the outside of the gear's boss. Most of the work here was in cutting the right shape in the black acetal, including drilling and tapping a hole. The tapping was done by hand, with a tap in a chuck.
